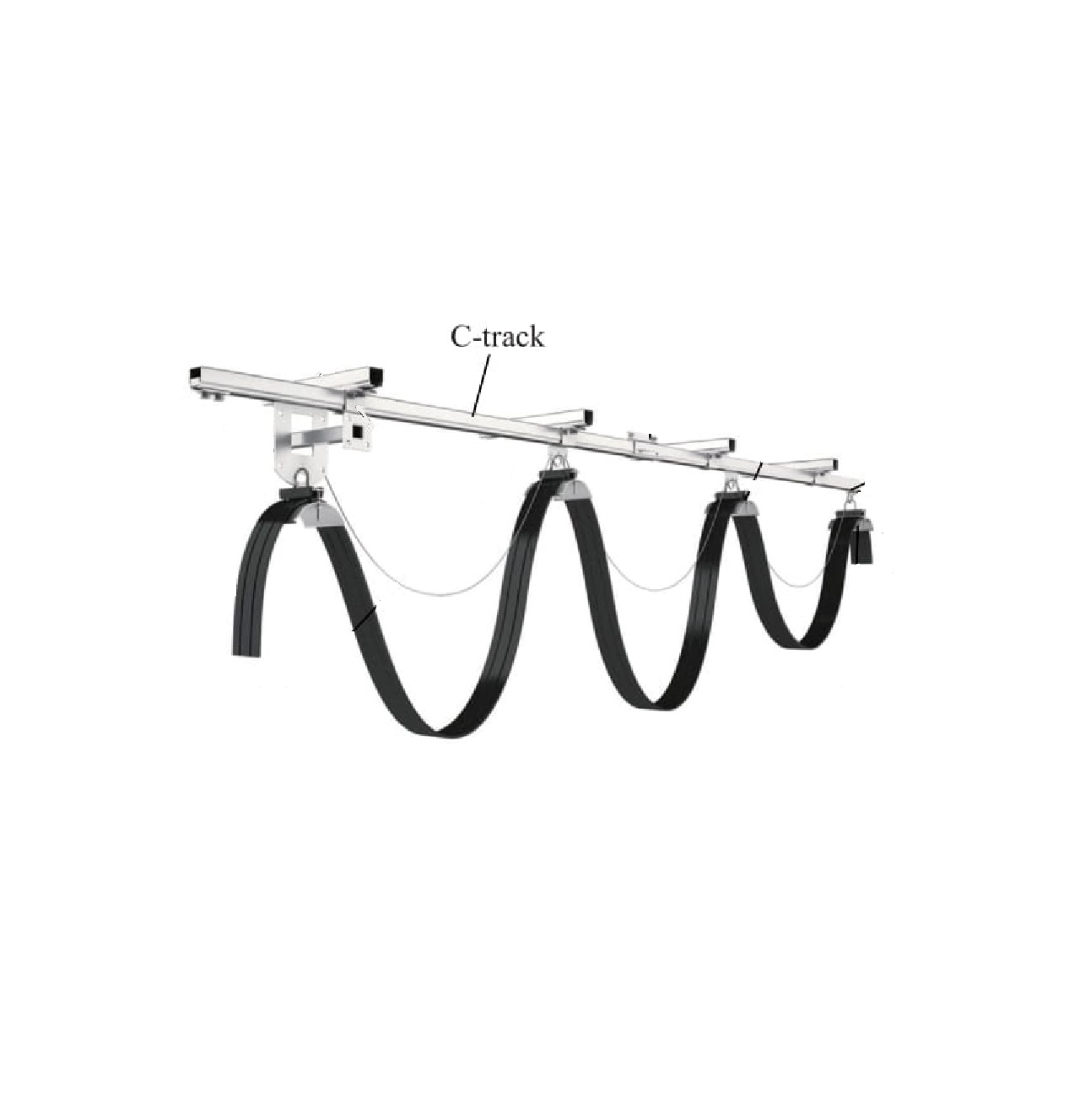

C-Track 4 Meter

C-Track 4 Meter

Material:

Galvanized Steel / Stainless Steel

Weight:

1.19kg/m

Feature:

  1. Popular worldwide.
  2. Suitable for the crane under 20 tons.
  3. Outdoor is workable.

Advantage:

  1. C truck: Good C shape, straight,
  2. Trolley: Balling bearing design for smoothly running,
  3. Spare parts: positioning pin locking design for easy installation and stable performance
Contact Us

Technical Parameters

Technical Data

Travel Speed:

< 120m/min

Temperature:

-40 C° – +125 C°

Cable load:

< 120kg

Cable loop depth:

>= 0.3m (travel speed max. 35m/min)
