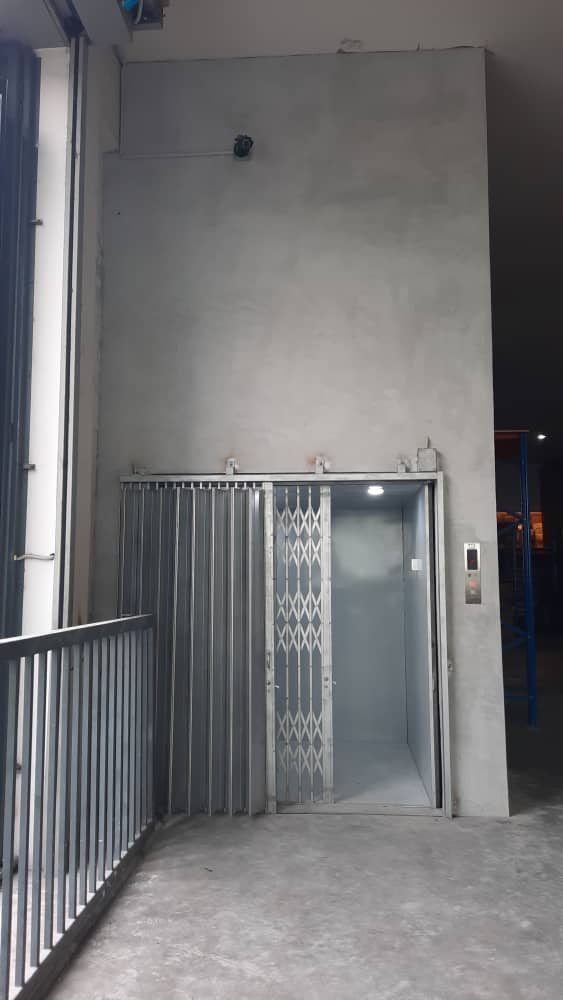

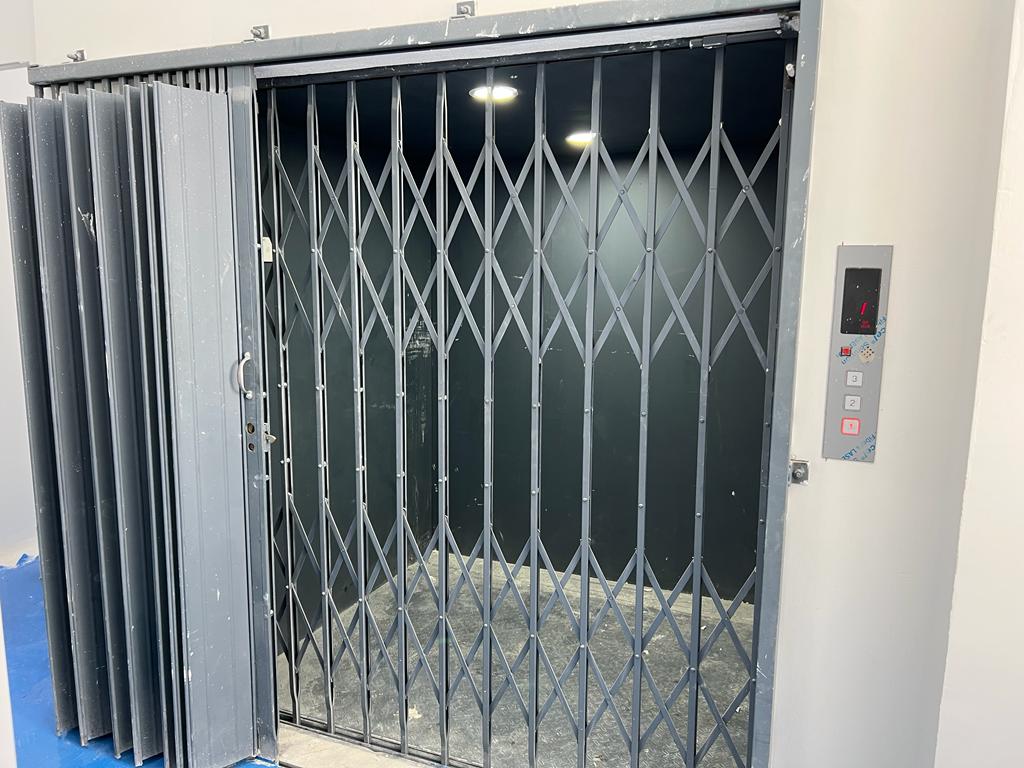

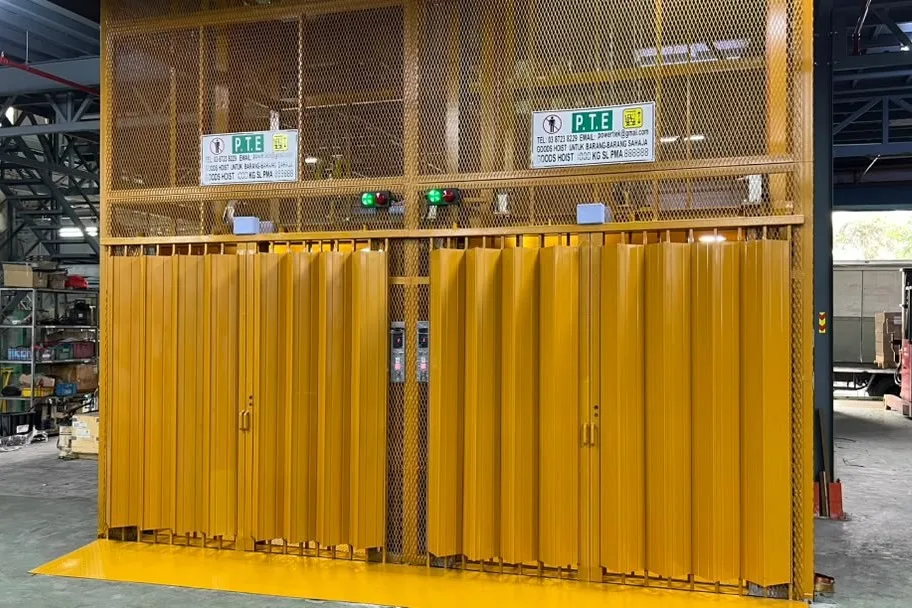

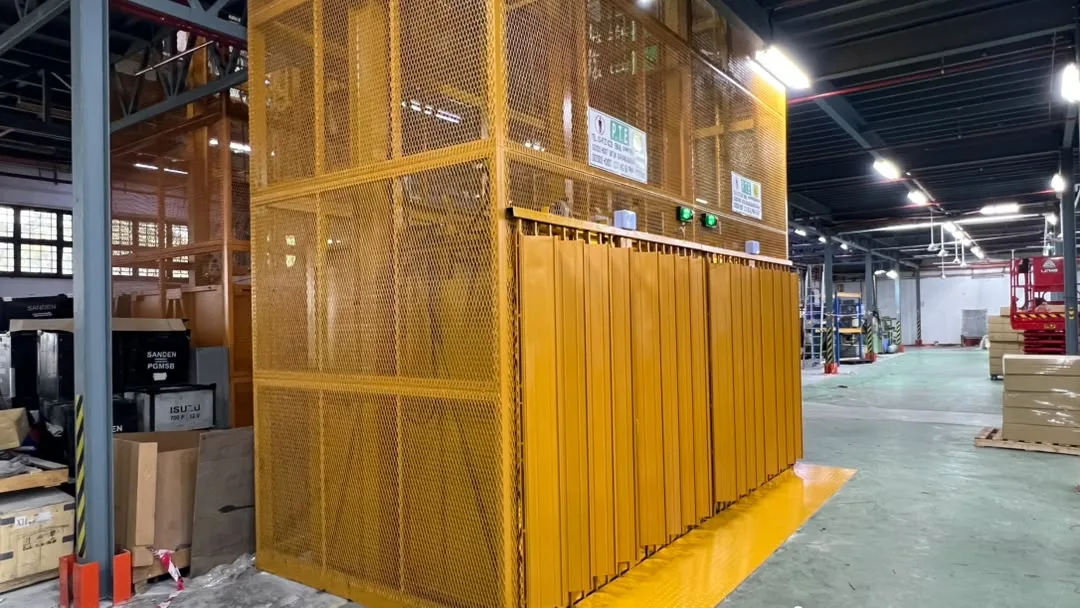

GOODS HOIST
Goods lift is designed to meet all requirements for quality, safety and service life. It is a perfect fit for tough and demanding environment such as warehouse, departmental store, factory and commercial building.
- Drive system: Hoisting system
- Rated speed: 9.0 – 10.0 m/min
- Travel height: 250 – 13000mm
- Number of stops: Max. 4 stops per lift
- Number of doors: Max. 8 doors per lift
- Number of doors per floor: Max. 2 doors per lift
- Pit: 500 mm depth
- Entry: One or two sides
- Top height: Minimum 2200mm
- Control System: PLC Programmable logic control
- Landing control: Manually collapsible gate
- Environment: Indoor , Outdoor
- Main Voltage: 415VAC
- Control Voltage: 24VDC
- Motor: 5kw
- Power supply: 415VAC , 3 Phase
- Rated load: 1000kg – 2000kg
