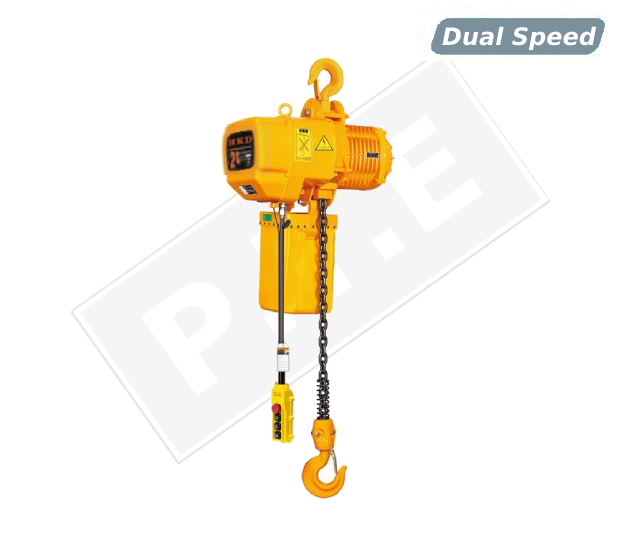

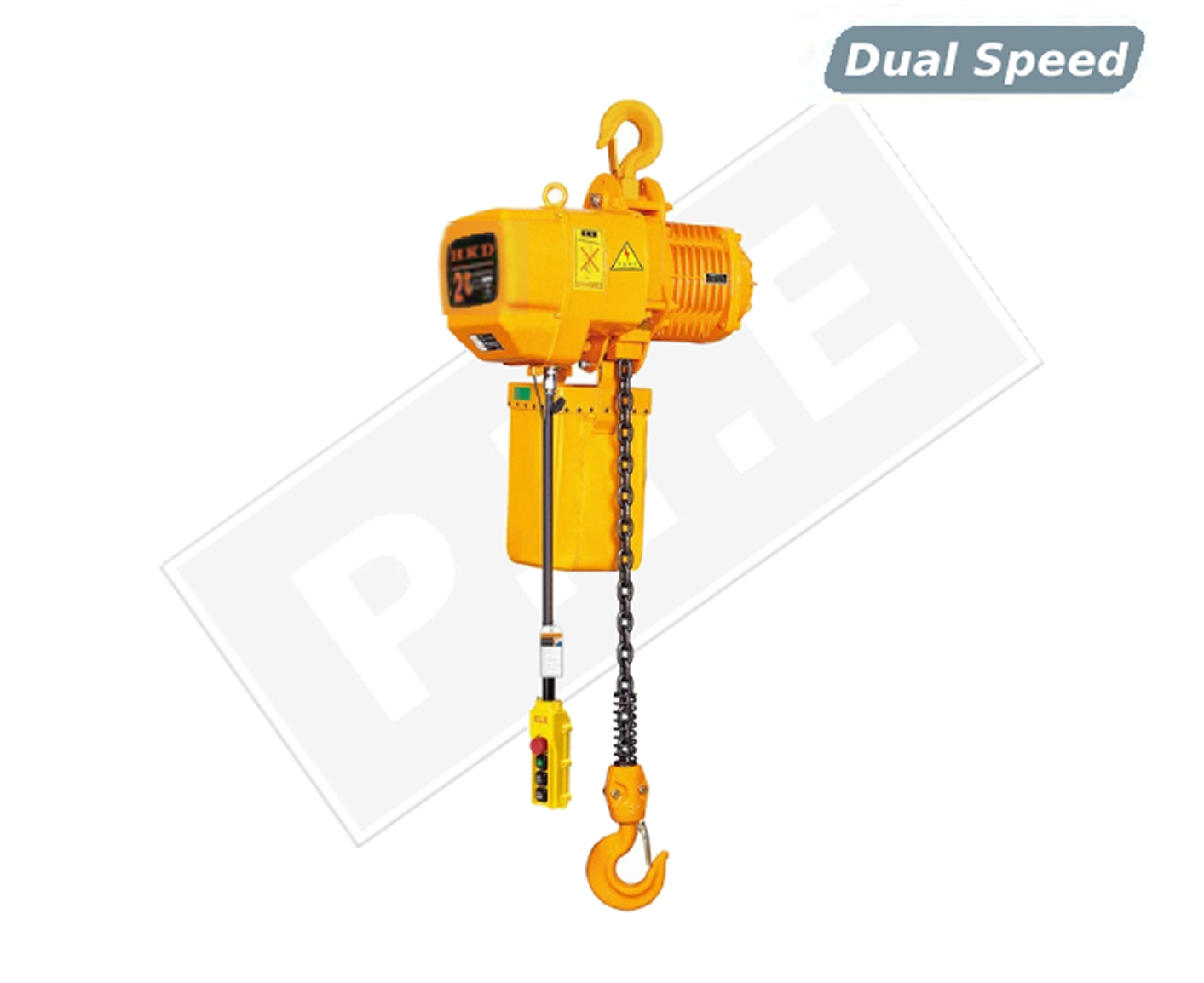

HKD 2 TON DUAL SPEED ELECTRIC CHAIN HOIST (415V) | HKD0201SD
Lifting height against customer’s requirement.
Model No:
HKD0201SD
Capacity:
2 ton
Power (kW):
3.0&1.0
Phase:
3
Frequency (Hz/s):
50
Warranty Period:
2 Years
Brand
HKD
Lifting Speed (m/min):
6.9&2.3
Rotation Speed (r/min):
2880&960
Voltage:
415V
Place of Origin:
China
| Type | Capacity (Ton) | Standard Lifting Height (m) | Lifting Speed (m/min) | Power (kW) | Rotation Speed (r/min) | Phases | Voltage (V) | Frequency (Hz/s) |
|---|---|---|---|---|---|---|---|---|
| HKD00501SD | 0.5 | 5 | 6.8 & 1.7 | 0.75 & 0.25 | 1440 & 360 | 3 | 415 | 50 |
| HKD0101SD | 1 | 5 | 6.6 & 1.65 | 1.5 & 0.5 | 1440 & 360 | 3 | 415 | 50 |
| HKD0102SD | 1 | 5 | 3.4 & 0.85 | 0.75 & 0.25 | 1440 & 360 | 3 | 415 | 50 |
| HKD0201SD | 2 | 5 | 6.6 & 1.65 | 3.0 & 1.0 | 1440 & 360 | 3 | 415 | 50 |
| HKD0202SD | 2 | 5 | 3.3 & 0.82 | 1.5 & 0.5 | 1440 & 360 | 3 | 415 | 50 |
| HKD0301SD | 3 | 5 | 5.4 & 1.35 | 3.0 & 1.0 | 1440 & 360 | 3 | 415 | 50 |
| HKD0302SD | 3 | 5 | 4.4 & 1.1 | 3.0 & 1.0 | 1440 & 360 | 3 | 415 | 50 |
| HKD0303SD | 3 | 5 | 2.2 & 0.55 | 1.5 & 0.5 | 1440 & 360 | 3 | 415 | 50 |
| HKD0502SD | 5 | 5 | 2.7 & 0.67 | 3.0 & 1.0 | 1440 & 360 | 3 | 415 | 50 |
| Type | Capacity (Ton) | H | A | B | D | E | I | J | K | L | M | N | Chain |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HKD00501SD | 0.5 | 540 | 545 | 260 | 285 | 165 | ∅35 | 27 | ∅34 | 25 | 17 | 17 | ∅6.3 |
| HKD0101SD | 1 | 650 | 582 | 280 | 300 | 176 | ∅42 | 32 | ∅42 | 32 | 24 | 24 | ∅7.1 |
| HKD0102SD | 1 | 575 | 545 | 260 | 285 | 165 | ∅35 | 32 | ∅35 | 25 | 24 | 24 | ∅6.3 |
| HKD0201SD | 2 | 800 | 670 | 320 | 430 | 265 | ∅49 | 40 | ∅49 | 40 | 28 | 28 | ∅10.0 |
| HKD0202SD | 2 | 835 | 582 | 280 | 300 | 236 | ∅49 | 40 | ∅49 | 40 | 28 | 28 | ∅7.1 |
| HKD0301SD | 3 | 845 | 670 | 320 | 430 | 265 | ∅59 | 48 | ∅59 | 48 | 34 | 34 | ∅11.2 |
| HKD0302SD | 3 | 950 | 670 | 320 | 430 | 320 | ∅59 | 48 | ∅59 | 48 | 34 | 34 | ∅10.0 |
| HKD0303SD | 3 | 950 | 582 | 280 | 350 | 205 | ∅59 | 48 | ∅59 | 48 | 34 | 34 | ∅7.1 |
| HKD0502SD | 5 | 1030 | 670 | 320 | 430 | 325 | ∅60 | 48 | ∅60 | 48 | 42 | 42 | ∅11.2 |
